JUKI Fast Smart Modular Mounter RS-1R
The components mounted on a board come in various shapes and sizes. This machine places the components at high speed with great accuracy.
The mounter has a section for picking up components called a head. Mounters come in two types. One is specialized in the placement of extremely small components at high speed. The other is a general-purpose (flexible) mounter capable of placing components of many different types.
This mounter can be used with two or more machines connected to each other.
| *1 | | L-Wide size is optional | | | |
| |
| *2 | | Applicability to long PWB is optional. | |
| |
| *3 | | When using MNVC. (option) | |
| |
| *4 | | KE-3010 : When using both high-resolution camera and MNVC. (option) | |
| |
| *5 | | Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour) | |
| |
| *6 | | Estimated value when using MNVC and picking up components simultaneous with all nozzles.
MNVC is option in the KE-3010. | |
| |
| *7 | | When using Electric double tape feeder EF08HD. | |
RS-1R, superior productivity, versatility with the best throughput in an advanced, all-in-one.
Features:
■ Class leading speed, up to 47,000 cph
■ Self-optimize smart head

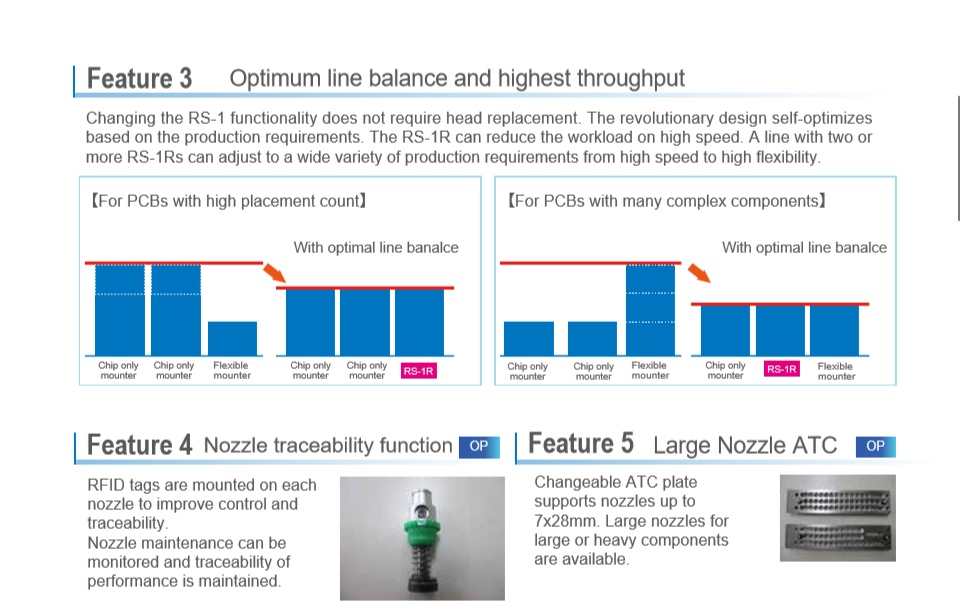

■ Optimum line balance and highest throughput
■ Nozzle traceablity function
■ Large Nozzle ATC
■ Wide component range from 0201(metric) to large connectors and ICs
■ Optimal for LED placement
